Contactless 125 KHz RFID Smart Proximity PVC Blank White Card With Customized Logo High Quality Plastic Key Cards
About Our RFID Card

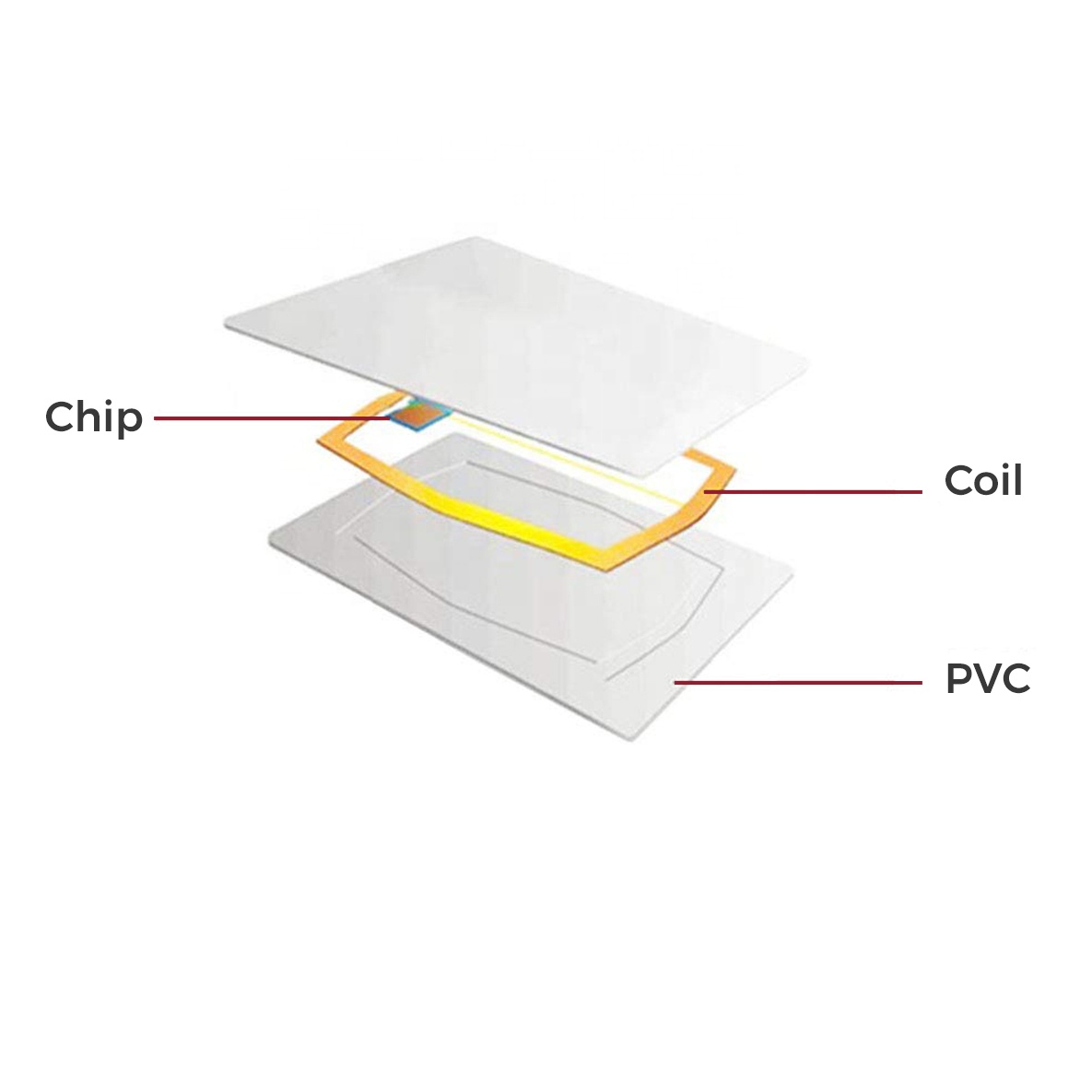

The RFID CARD offers extended lifespan, high electrical performance and mechanical durability. Characterized by a high-quality surface, the rfid card provides an excellent base for printing. Our rfid card is convenient to process with all common card printers and readers, which facilitates easy integration into customers’ applications. Options such as slot punch marking and programming are available on request. Smartrfidcard can also offers a combination of LF/HF or HF/UHF technologies in one card.
Product Decription
| RFID Card |
| Type | Contactless Read & Write |
| Operating Frequency | 125KHz or 13.56MHz or 860MHz~960MHz |
| IC Available | LF - EM4200, EM4100, Hitag-1, Hitag- 2, Hitag-S, TK4100 |
| HF - MF1 S50, MF1 S70, I-CODE, Ti 256, INSIDE 2K |
| UHF - ISO18000-6B, ISO18000-6CEPC C1 Gen2 |
| Reading Distance | Up to 3~7m |
| Environment |
| Operating Temp | -40º C to +90º C |
| Storage Temp | -20º C to +70º C |
| Physical Characteristics |

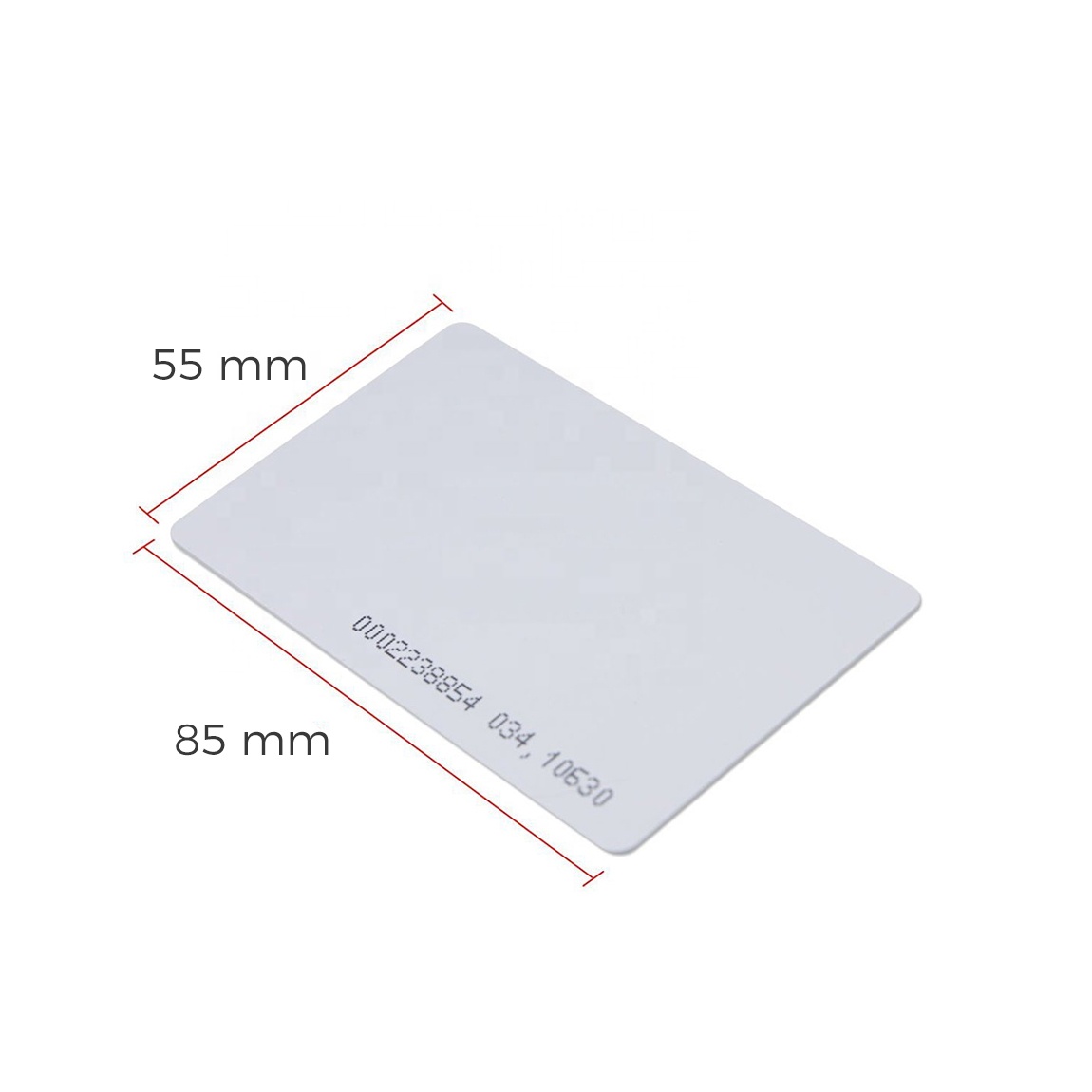

| Size | 86 * 54mm, thickness: 0.8mm |
| Standard Colour | White, printable with silk screen |
| Housing Material | PVC / ABS / Magnetic Material /3M® Glue |
| Printing | Printable with silkscreen; |
| A customized logo can be printed on the tag. |
Available IC's
| Available 125KHz Chip | | | | |
| Chip Type | Protocal | Capacity | Anti Collision | Function |
| TK4100 | / | 64 bit | No | Read Only |
| EM4200 | / | 128 bit | No | Read Only |
| T5577 | / | 330 bit | No | Read/Write |
| Available 13.56MHz Chip | | | | |
| Legic MIM 256 | / | 256 byte | No | Read/Write |
| Legic MIM 1024 | / | 1024 byte | No | Read/Write |
| Legic ATC 128 | / | 128 byte | Yes | Read/Write |
| Tag-it 2048 | ISO15693/18000-3 | 2048 bit | Yes | Read/Write |
| Available 860-960MHz Chip | | | | |
| Alien H3 | ISO18000-6C | 512 bit | Yes | Read/Write |
| Monza 3 | EPC G1 GEN2 | 512 bit | Yes | Read/Write
|
Key Features
-Standard 125Khz ID Card; Read only, can't been programmed
-Can not support HID
-Compatible with standard ID access devices or ID reader
-Can't compatible with UHF reader and encrypted readers, for example, HID, Indala,Cobra, APCiK ,Paradox,Radio, etc.
-Pre-programmed with unique 18-digit ID number on each card. (The first 10 digits are the ABA code, the last 8 digits are wiegand code)
Applications
-Access Control
-Membership Management
-Transpotation
-Card Printer
-Hotel
- etc.
Custom Crafts
We can support more

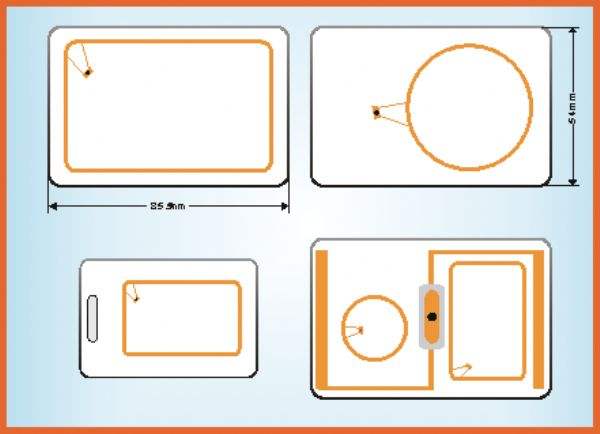

- Ability to Design different RFID antenna, in different RF protocol, and frequency.
- Research and design different encapsulation for special environments.
- Data encoding and encryption options.
- Transponder design base on correspond with customer reader.
- Individual process.
About Our Factory
FAQ
Q: Is your company a manufacture or a reading company?
A: We are a professional manufacturer with moan than 10 years experience for variable data scratch card printing and exporting.
Q: How's your cards quality?
A: Our cards have been verified by SGS.
Q: Can I customize my own card?
A: Customized card is available, including design, size, thickness and scratch label.
Q: What's the design format that I need to send?
A: CDR/AI/PDF/PSD format with layers graph. Leave each design 3mm bleeding line.
Q: Does your card have color aberration?
A: The color deviation is below 10%.
Q: What if I don't have designers?
A: We have experienced designers to deal with your artwork.
Q: Can I get sample for reference?
A: Free similar sample is available, just need you pay the freight. Customized sample needs you pay sample fee and freight.
Q: How many is your defective rate?
A: Each card is checked 3 times and defective rate below 0.01%.
Q: How can you guarantee my data safety?
A: Pin is 100% hidden by scratch panel and monitors installed in every corner.
About Our After Sales Services
We have professional team to answer your questions before and after sales.
Welcome to send us the inquiry, and we will try our best to meet your requirement!
Shenzhen Frondent Technology Co., Ltd is a best supplier of the smart RFID cards, if you have any RFID card, smart card, chip card requirements, freely contact us.
|
|
Contactless 125 KHz RFID Smart Proximity PVC Blank White Card With Customized Logo High Quality Plastic Key Cards Images
|
